Nederman Fume Eliminator 860

Product code: 70842010

Check Stock By Store

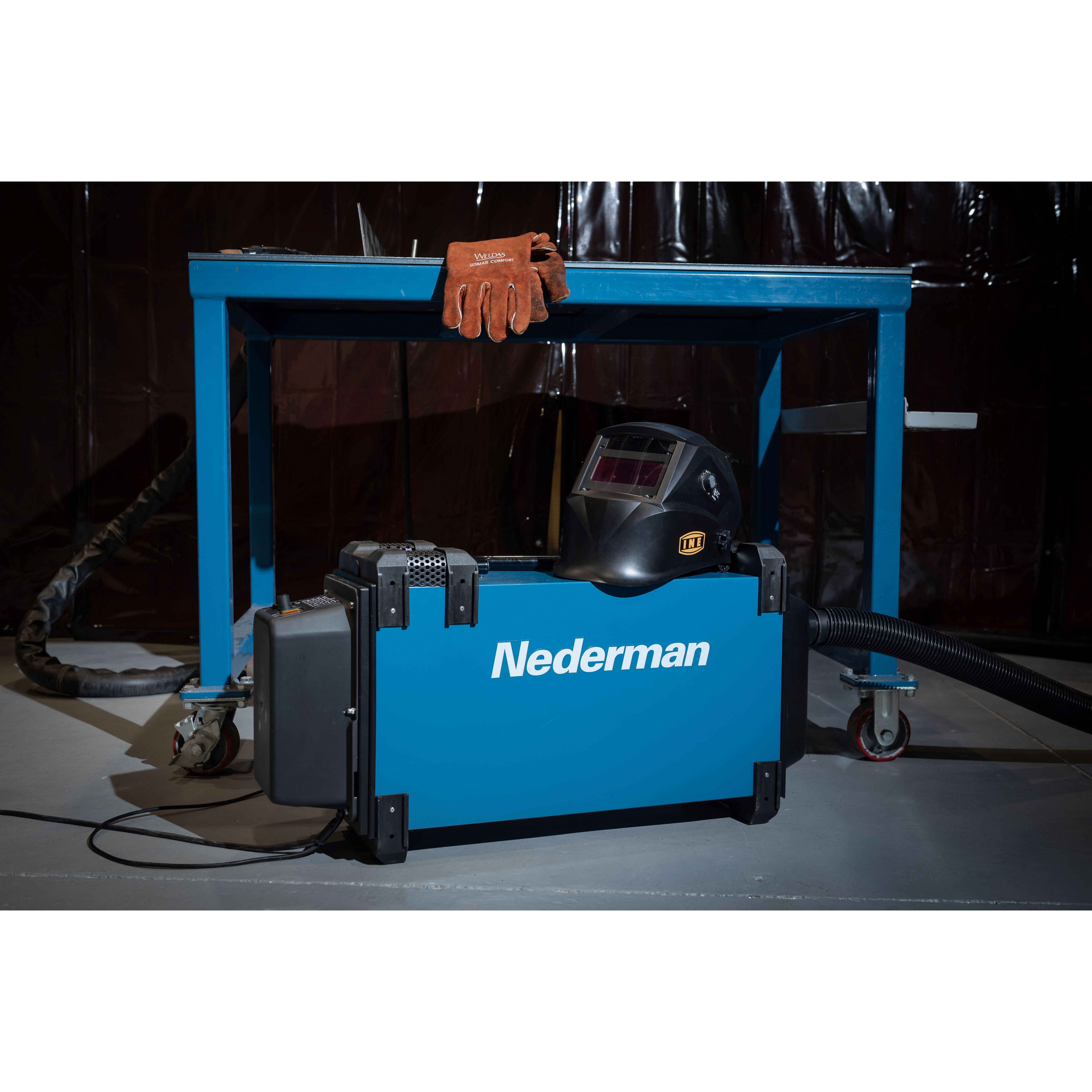

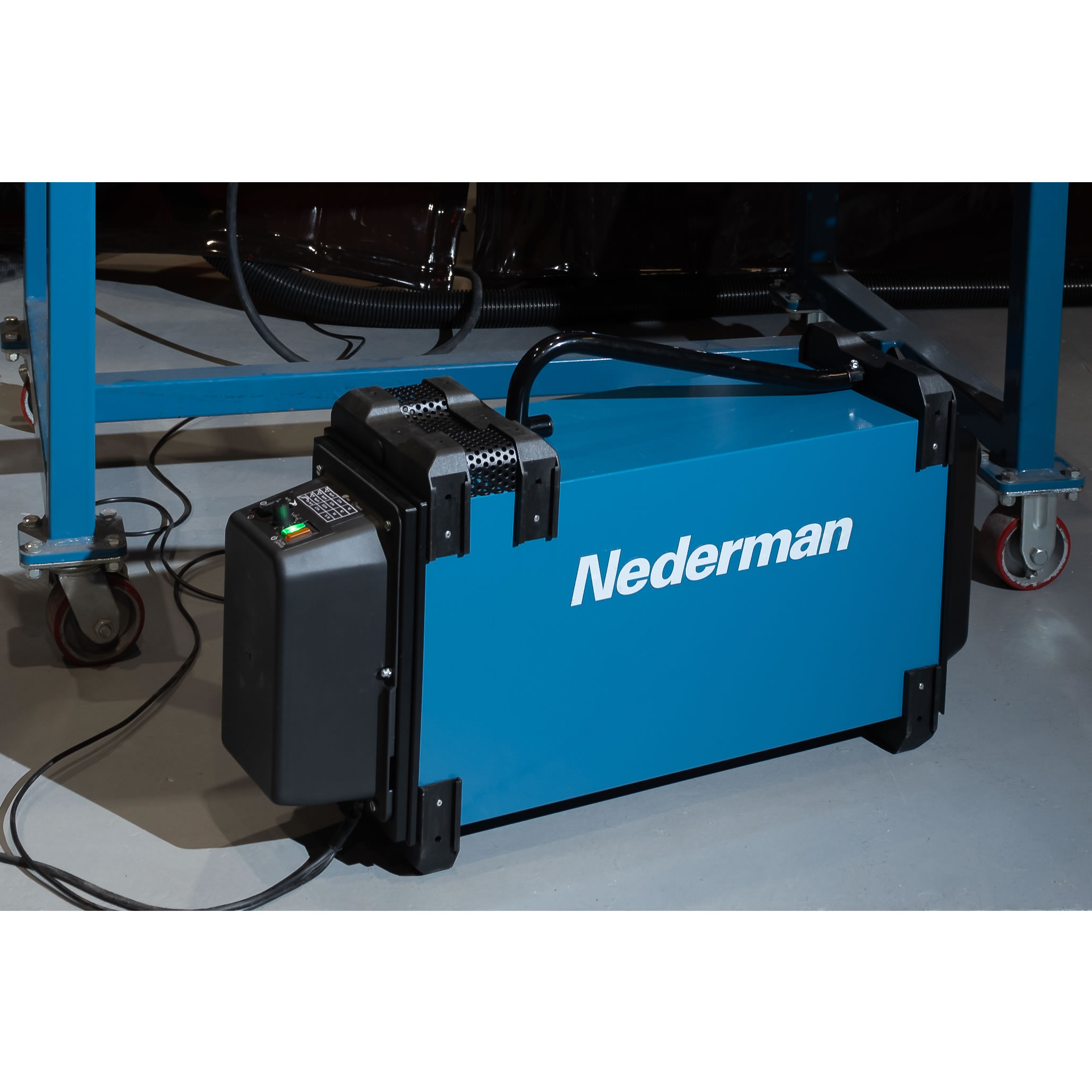

Portable source capture for on-torch extraction

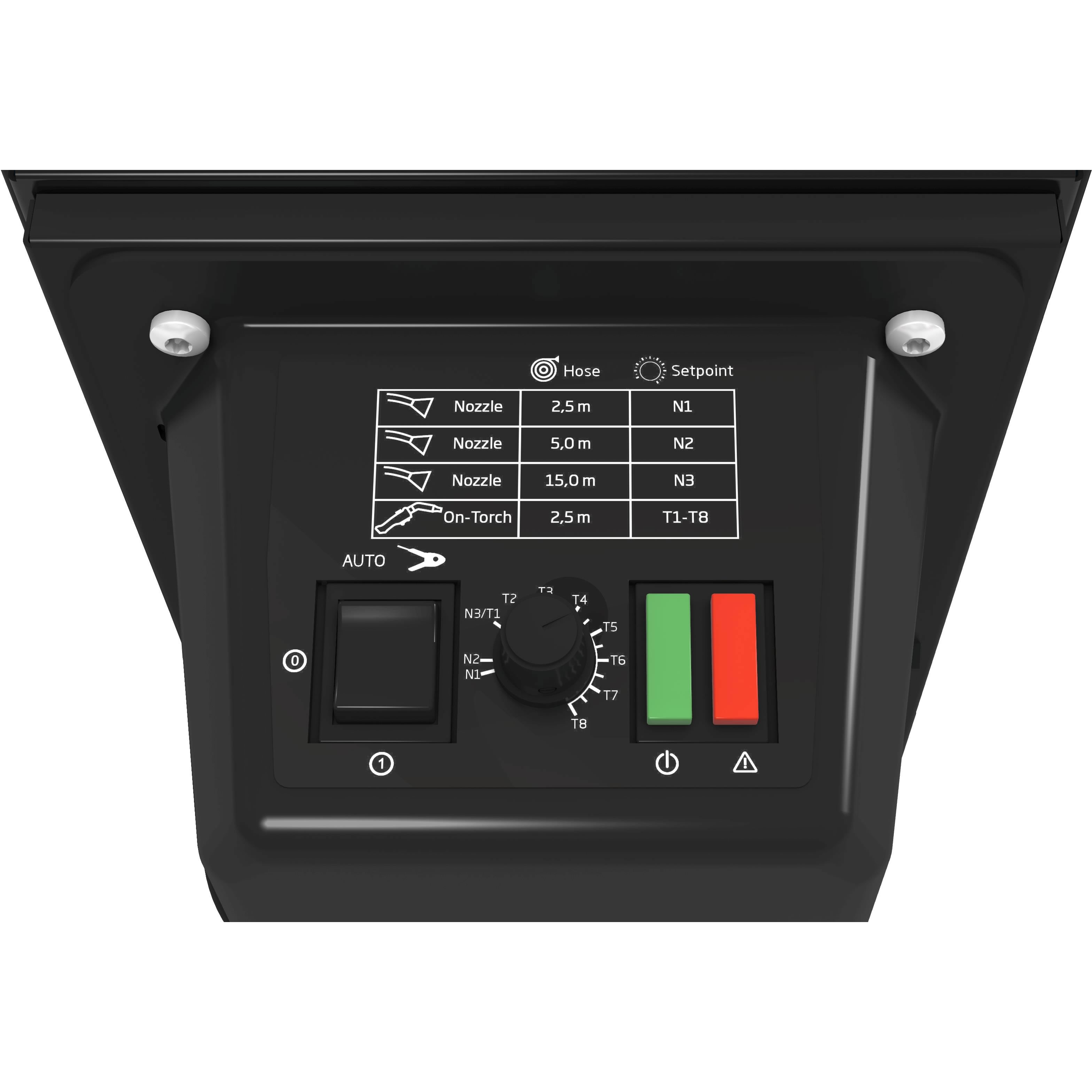

The Fume Eliminator 860 is designed to be carried to the working area. Although it can be used with a nozzle, it is specifically developed for on-torch applications - connected directly to the welding torch, it extracts the fume directly at the source. The FE 860 has a knob to set the desired suction level, an automatic start/stop function, which starts the unit as soon as the welding begins and significantly improved motor performance (versus the FE840/841). The FE 860 is suitable for extraction of fume in maintenance welding applications and is compliant with ISO 21904 (W3).

Product Datasheet

    This product is not available online.
    Please contact us to buy.

    • Portable and easy to carry.
    • Automatically maintains the set extraction flow - ideal for on-torch applications
    • Warnings at malfunction and when the filter is 85% and 100% full
    • High efficiency Nanofiber filter protecting the user from submicron particles. F9 (EN 779) MERV 14 (ASHRAE 52.2)
    • Designed for torches requiring max 18 kPa at connection point - according to ISO 21904
    CertificationsCE
    StandardISO 21904-1
    Filter efficiency (%)99,7
    InstallationIndoor
    ApplicationFumes
    Working pressure (kPa)25
    Max Airflow (m3/h)180
    Hose length (m)2.5
    Filter Area (m²)5.3
    Filter typeCartridge
    Number of filter elements1
    Filter materialCellulose with nanofiber
    Weight (kg)16
    Working Pressure (kPa)25
    Hose diameter (mm)50
