Coburn Straightaway 216 Top Track 200Kg

Product code: Select Options

Select Options
x
Inverness Depot4
Kirkwall Depot4
From £44.33 (£36.94 +VAT)
Delivery Truck Logo

Shipping calculated at checkout

Or Free Collection From Store

Straightaway 216 is a light/medium weight industrial sliding door system for doors up to 200Kg.

Designed to be used with either timber or metal doors on garages, factories, warehouses etc.

It can be used with single or multiple track runs and bottom channel and in some cases can be replaced with stay rollers to leave a clear threshold.

The Straightaway 216 is a tried and tested system and once installed needs minimum maintenance.

Available in 4 lengths:

1.8m, 2.1m, 2.4m, 3.0m

Datasheets for :

Fitting Instructions

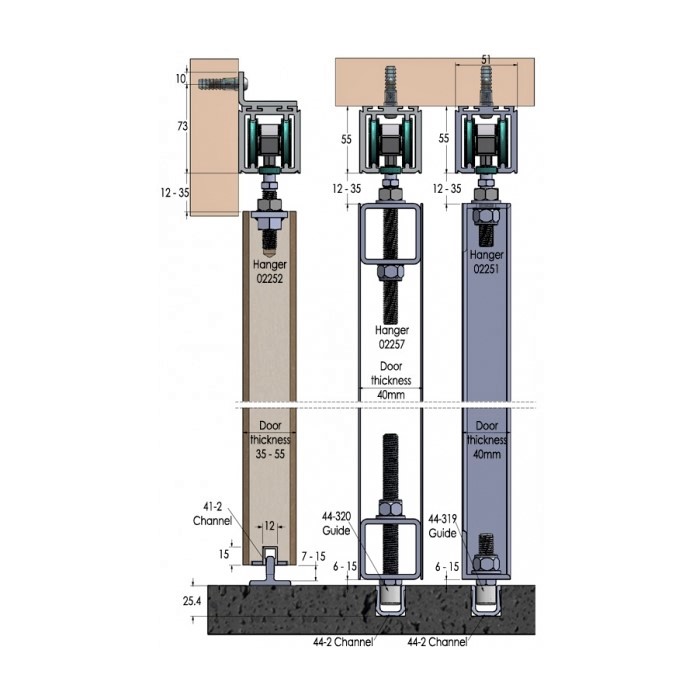

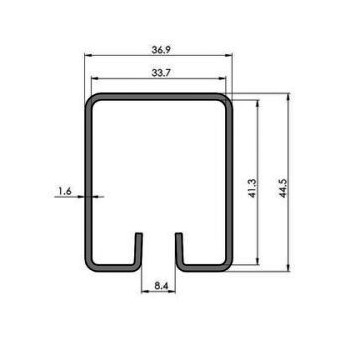

Track Dimensions Drawing
Single Track Application
Double Track Application

can be downloaded via the links below.

216 Single Track Application216 Fitting Instructions216 Double Track Application216 Track Drawing
  • Length
Length:Select

Quantity:

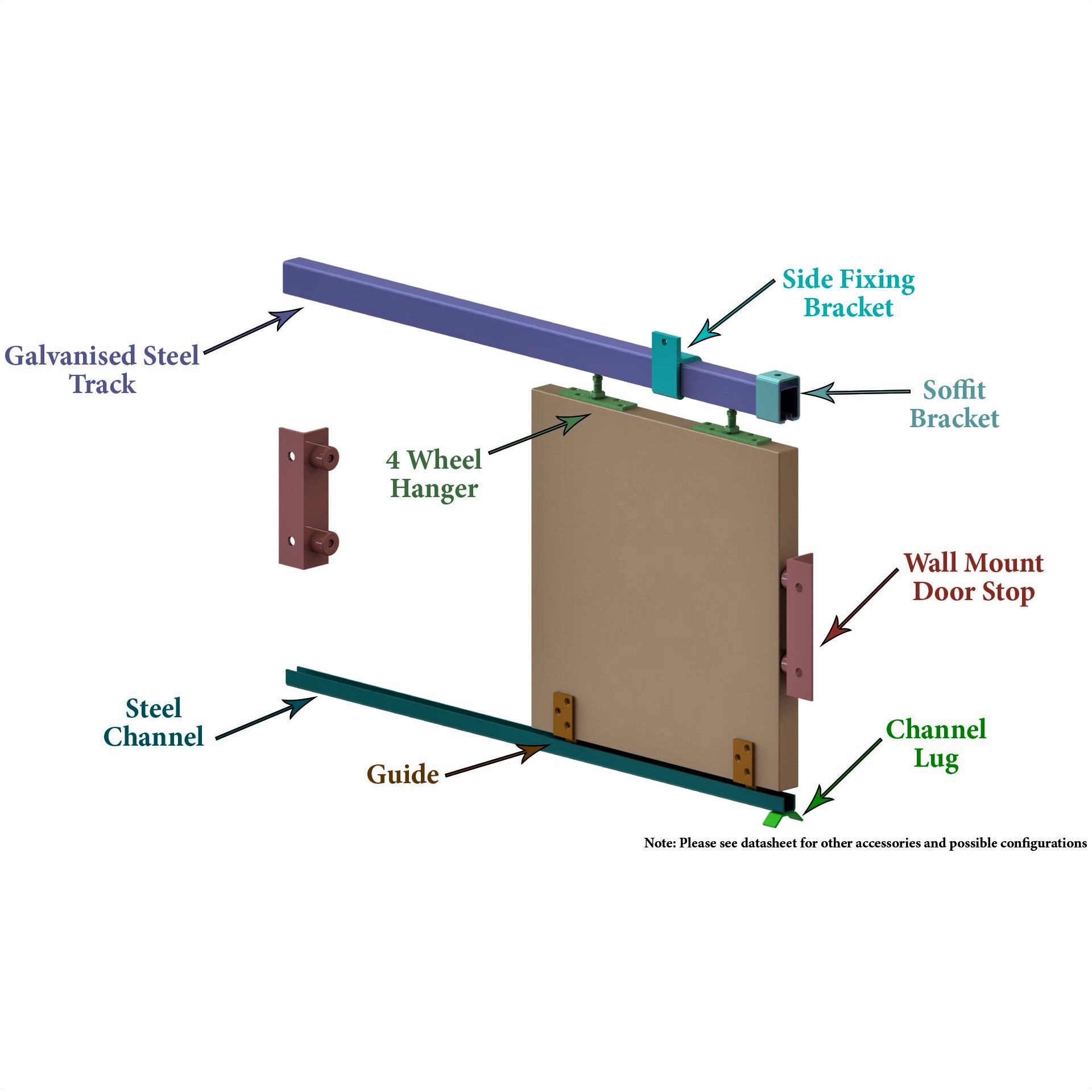

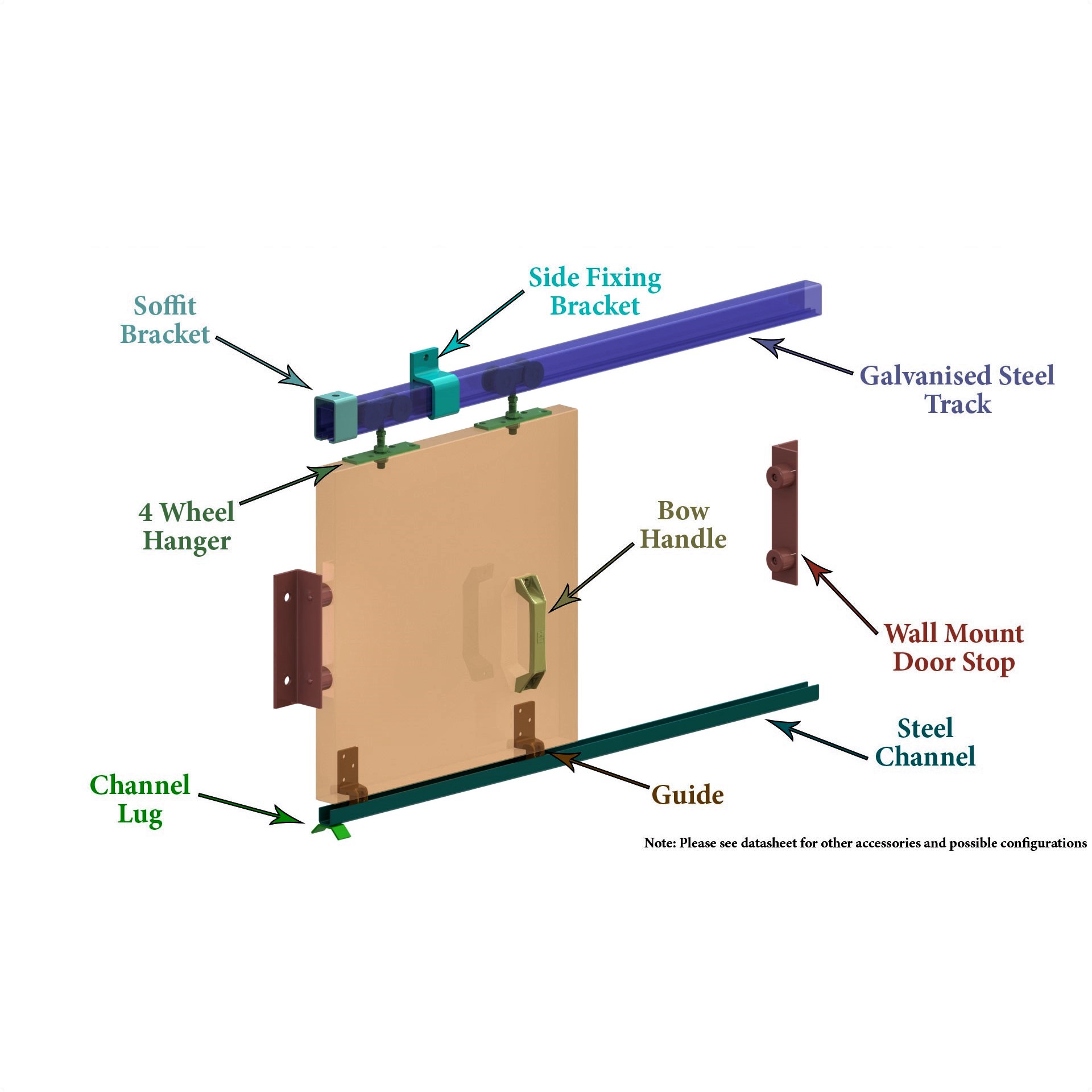

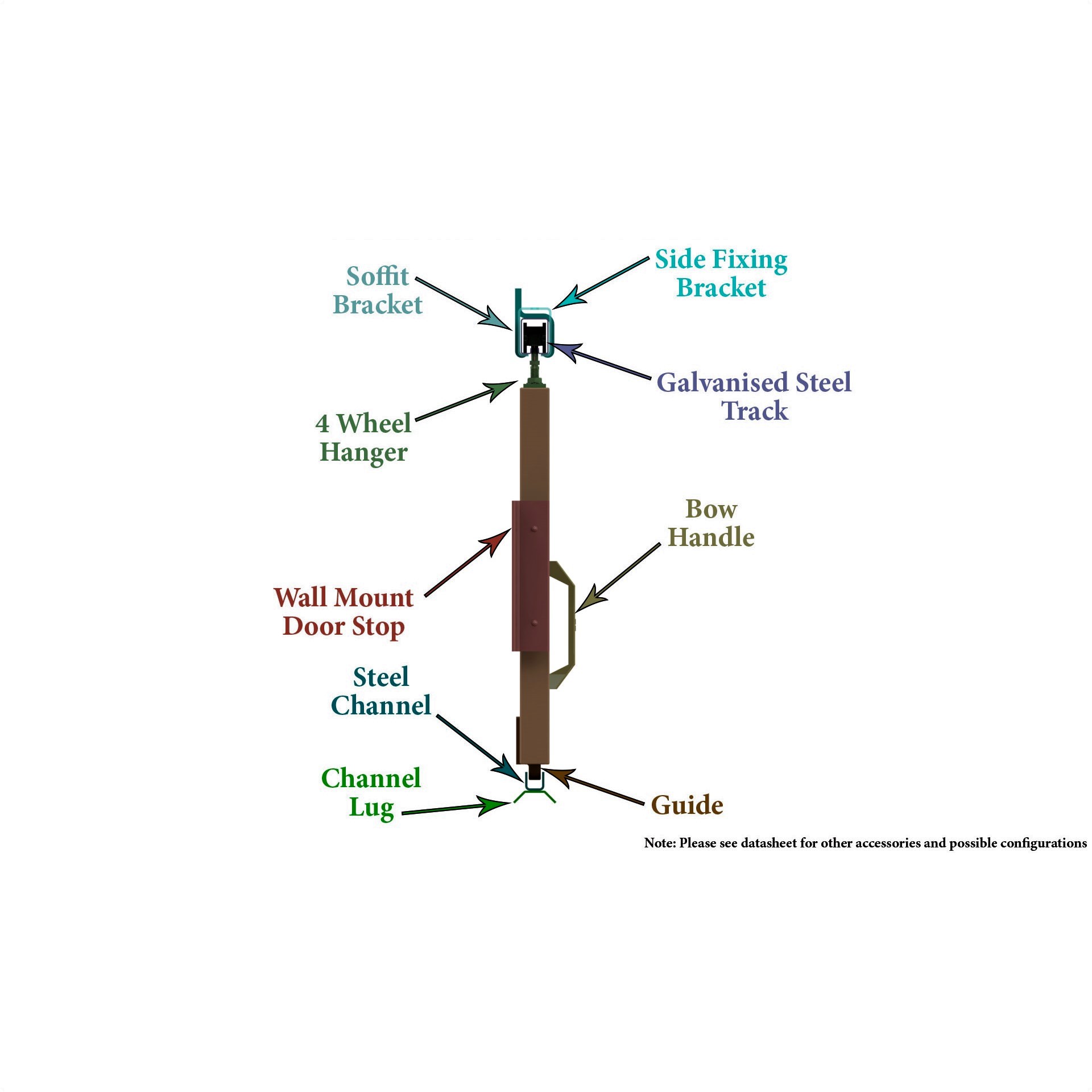

  • Top hung sliding system for external timber or metal doors up to 200kg
  • Ideal for industrial applications
  • Steel top track galvanised to BS EN 10346
  • Hangers with precision ball bearings and high performance steel wheels provide smooth operation
  • Vertical and lateral adjustment available on hangers ensures a perfect fit
  • Soffit, wall and double track wall fixing brackets available
  • Range of bottom guiding available including the use of stay rollers to achieve a clear threshold
  • Suitable for single or multiple track layouts
  • Any number of doors can be used on single or multiple lines of track to cover the width of the opening
