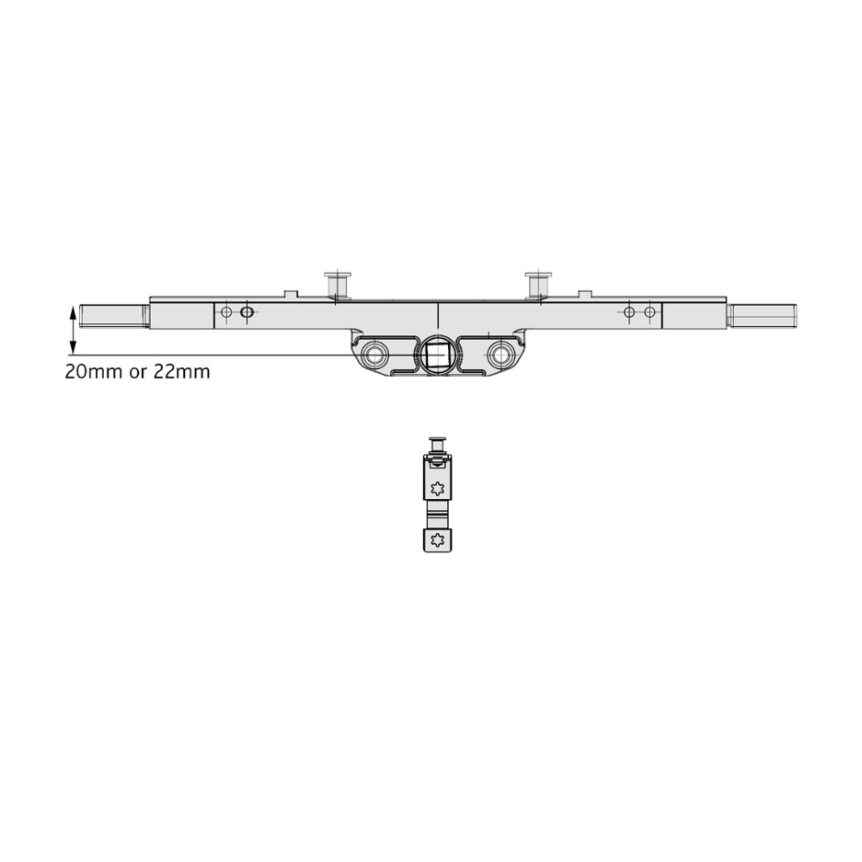

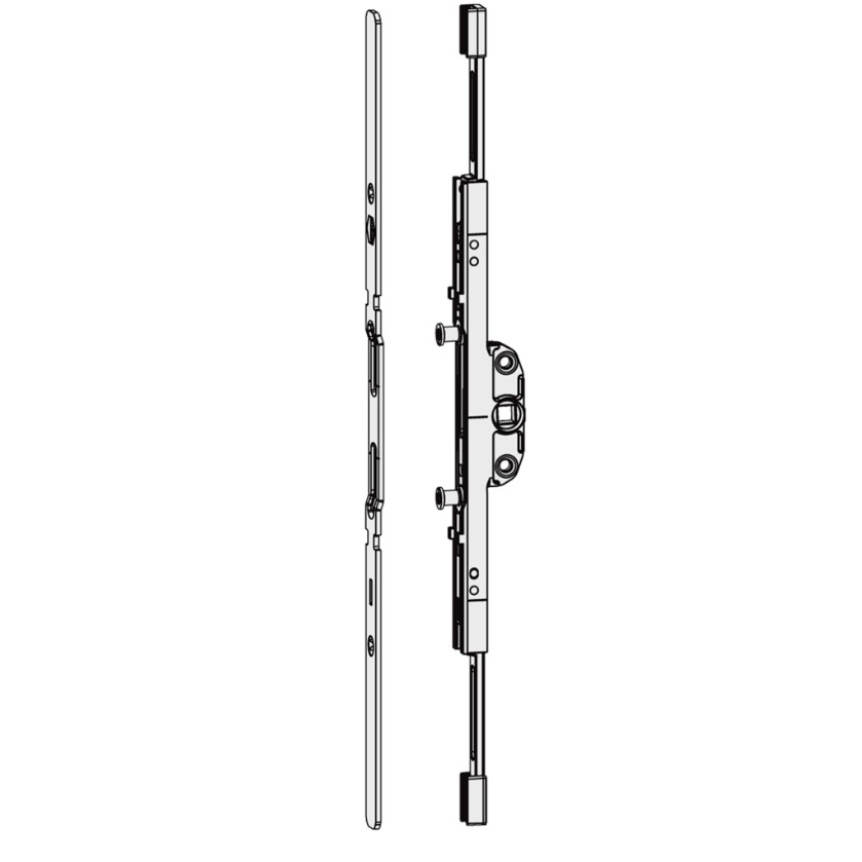

Aldridge Maco MK II Non-Cropable Shootbolt Window Gearbox 22MM
Product code: 12407708
£22.96 (£19.13 +VAT)
£6.95
Or Free Collection From Store
The Maco MK II shootbolt window gearbox incorporates a reverse locking feature for improved security. The reverse action gearbox allows the locking mushroom cams to locate from both directions into the striker to give high security locking. It is tested to the enhanced security requirements of BS7950 on major profiles, the centre mushroom cams are tested to 8.7 kilo newtons, more than double the current requirements of BS7950 of 3 kilo newton.
To speed up installation it has rapid-fix non cropable extensions that allow for fast assembly with no requirement to cut extensions to size and click fix eurogroove clips that hold the extensions in place. This gearbox is salt spray tested to 480 hours, comes with a 10 year guarantee along with PAS23, PAS24, BS7950 and Secured by Design accreditation.
To speed up installation it has rapid-fix non cropable extensions that allow for fast assembly with no requirement to cut extensions to size and click fix eurogroove clips that hold the extensions in place. This gearbox is salt spray tested to 480 hours, comes with a 10 year guarantee along with PAS23, PAS24, BS7950 and Secured by Design accreditation.
Quantity:
- Plus / minus 1mm cam adjustment
- Secured by Design (SBD licence held by Maco Door & Window Hardware (UK) Ltd)
- Shootbolt plates interlock with the mushroom plate for greater security
- Centre mushroom cams tested to 8.7 kilo newtons
- Reverse action shootbolt espagnolette
- Click Fix eurogroove clips
- Rapid fix non-cropable version
| Cam Height | 7.7mm |
| Case Depth | 29mm |
| Faceplate Width | 16mm |
| Finish | Silver |
| Length | 34cm |
| Locking Point Mushroom | 2 |
| Standards | Secured by Design, PAS 24:2016 |
| Weight | 125g |
