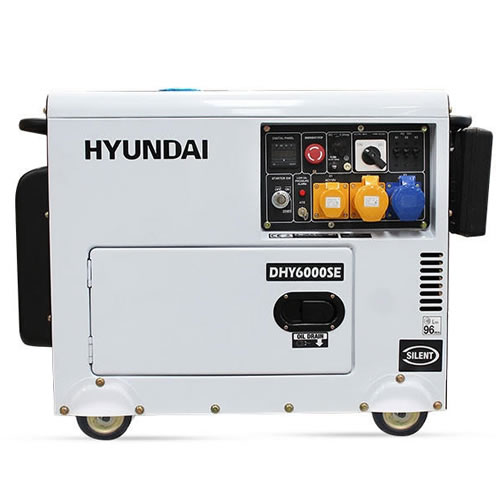

Hyundai 5.3kW/6.7kVA Silenced Standby Single Phase Diesel Generator
Product code: 39452104
£1349.00 (£1124.17 +VAT)
The Hyundai DHY6000SE is one of the most popular sub 10kW standby diesel generators available on the market today. The compact size, clean power output and low noise make it a reliable source of backup electrical power for your business or home and is portable enough for fieldwork. The DHY6000SE is powered by Hyundai's efficient, low emission, 4 stroke D400E 10hp engine and produces 5.3kW of clean power to your home or business.
The generator has 1 x 115V 16amp, 1x 115V 32amp and 1 x 230V 32amp sockets, allowing you to power a wide range of equipment.
It also benefits from a sophisticated AVR alternator.
The large 13-litre fuel tank can provide up to 16 hours of run time @ 50% load and the DHY6000 has the ability to run off red diesel making it, even more, cost-effective. The DHY6000SE features electric start and a convenient digital control panel which displays the frequency, voltage and total run time.
Model | DHY6000SE |
Rated/Prime kVA* | 5.6 |
Rated/Prime kW | 4.5 |
Max/Standby kVA* | 6.7 |
Max/Standby kW | 5.3 |
Phase | Single |
Voltage | 115 / 230 |
Connection Method(s) | Sockets - 1 x 115V/16A 1 x 115V/32A 1 x 230V/32A |
Rated Speed (RPM) | 3000 |
Frequency (Hz) | 50 |
Max/Continuous Current (Amps) | 115v 46.1 / 39 - 230v 23 / 19.5 |
Power Factor (Cosφ) | 1 |
Fuel/Power Source | Diesel |
Fuel Tank (Litres) | 13 |
Runtime (Hours) @ 100% Load | 12.4 |
Noise Level @ 1m 75% load (dB) | 9.03 |
Noise Level @ 7m 75% load (dB) | 70 |
Hyundai Diesel Engine Model | D400E |
Engine Power (hp) @ 3000rpm | 7.8 |
Engine Displacement (CC) | 418 |
No. of Cylinders | 1 |
Displacement (Litres) | 418 |
Recommended Oil Type | 15w40 / 10w40 |
Oil Capacity (Litres) | 1.65 |
Oil Filter Part No. | D400-B9+D400-B8 |
Aspiration | Natural |
Fuel Regulation/Governor System | Mechanical |
Fuel Consumption (100% Load) [Litres] | 1.44 |
Fuel Filter Part No. | D400-R05 |
CoolingForced | Air-Cooled |
Alternator Model | D400-SO1-4 |
Breakers | 1P 28A 1P 19A 1P 13A |
Alternator Type | Brushed |
Voltage Regulation | AVR |
Air Filter Part No. | D400-I4 |
Net Weight (kg) | 150 |
Gross Weight (kg) | 158 |
Wheel Kit? | Yes |
Product Dimensions L x W x H (mm) | 920 x 520 x 740 |
Packaged Dimensions L x W x H (mm) | 960 x 560 x 810 |
Battery (Ah) | 12v 36a/h |
ATS / MTS Compatible | Yes |
Control Panel | LED3 DISPLAY |
Warranty | 1 Year / 1000 Hours* (Terms apply) |
Model EAN | 6040001600025 |
Product Type | Diesel Generator |
