Holzstar TKS 254 E Table Saw 230V
Product code:38049530
£1078.80 (£899.00 +VAT)
254mm Dia sawbench package + 80mm max depth of cut + sliding table carriage + table width extention + mitre att + 2100W motor 230v
- Features
- Technical Specification - Circular saw unit
- Dimensions and weights
- Electrical Data
- Extraction port
- Noise emission

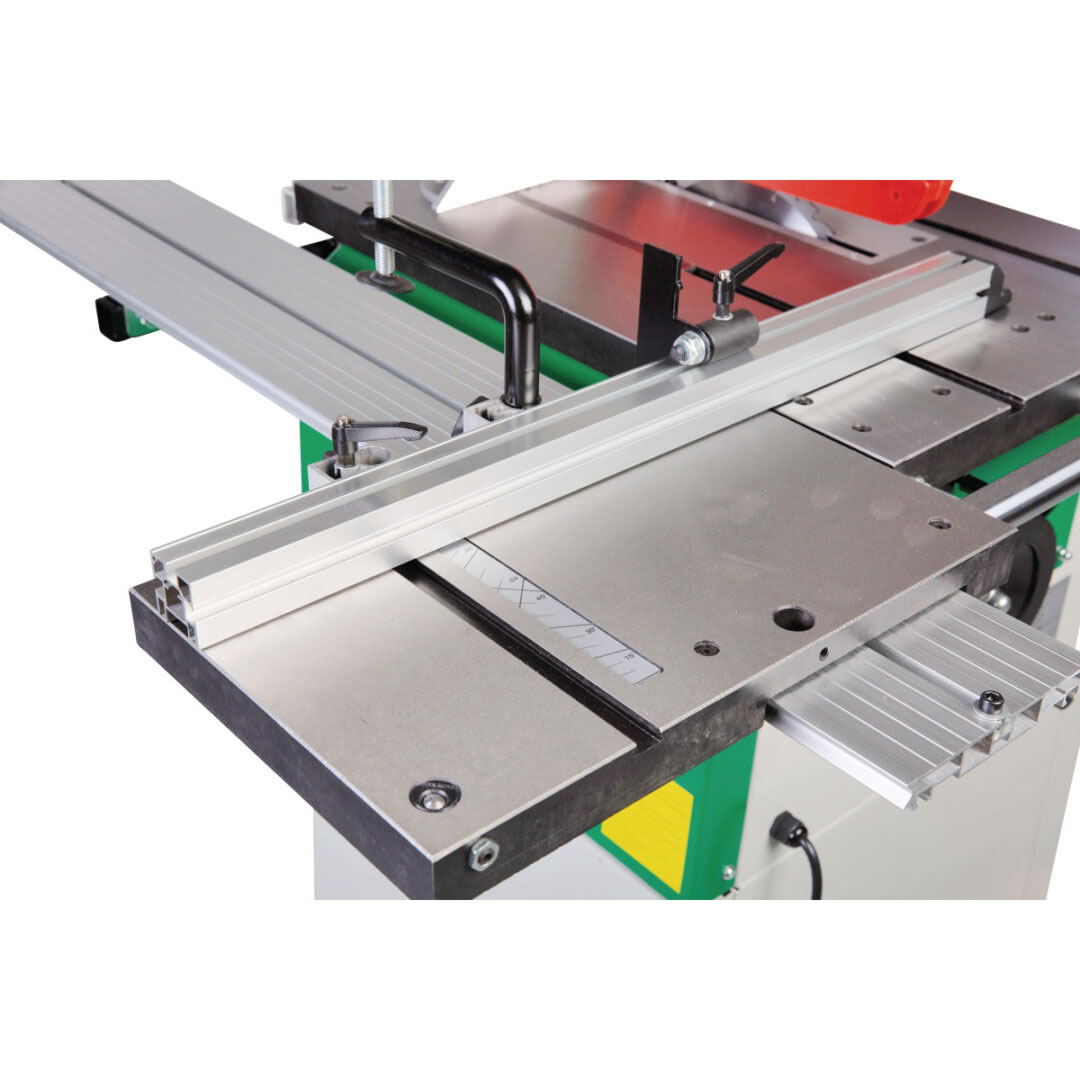

- Sliding carriage and table
- Large dimensioned cast iron table

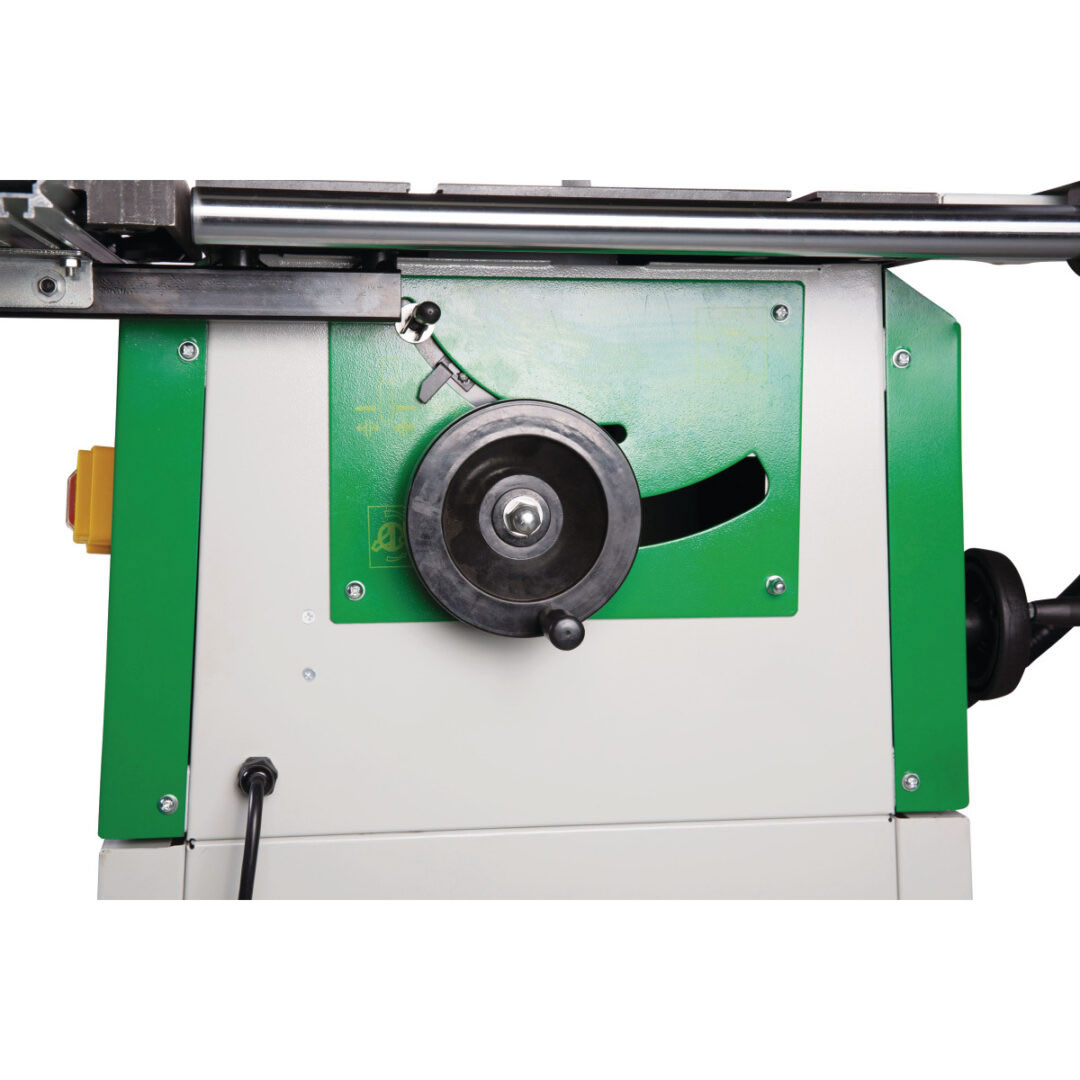

- Saw blade tilt from 90° to -45° to the left, precise, accurate to the degree and conveniently adjustable via handwheel and scale
- Large central suction connection Ø 100 mm
- The saw blade height adjustment is also carried out via a hand wheel from the operator’s front panel
- The stable suspension of the saw unit at the front and rear enables precise cuts to be made
- With powerful motor and thermal overload protection

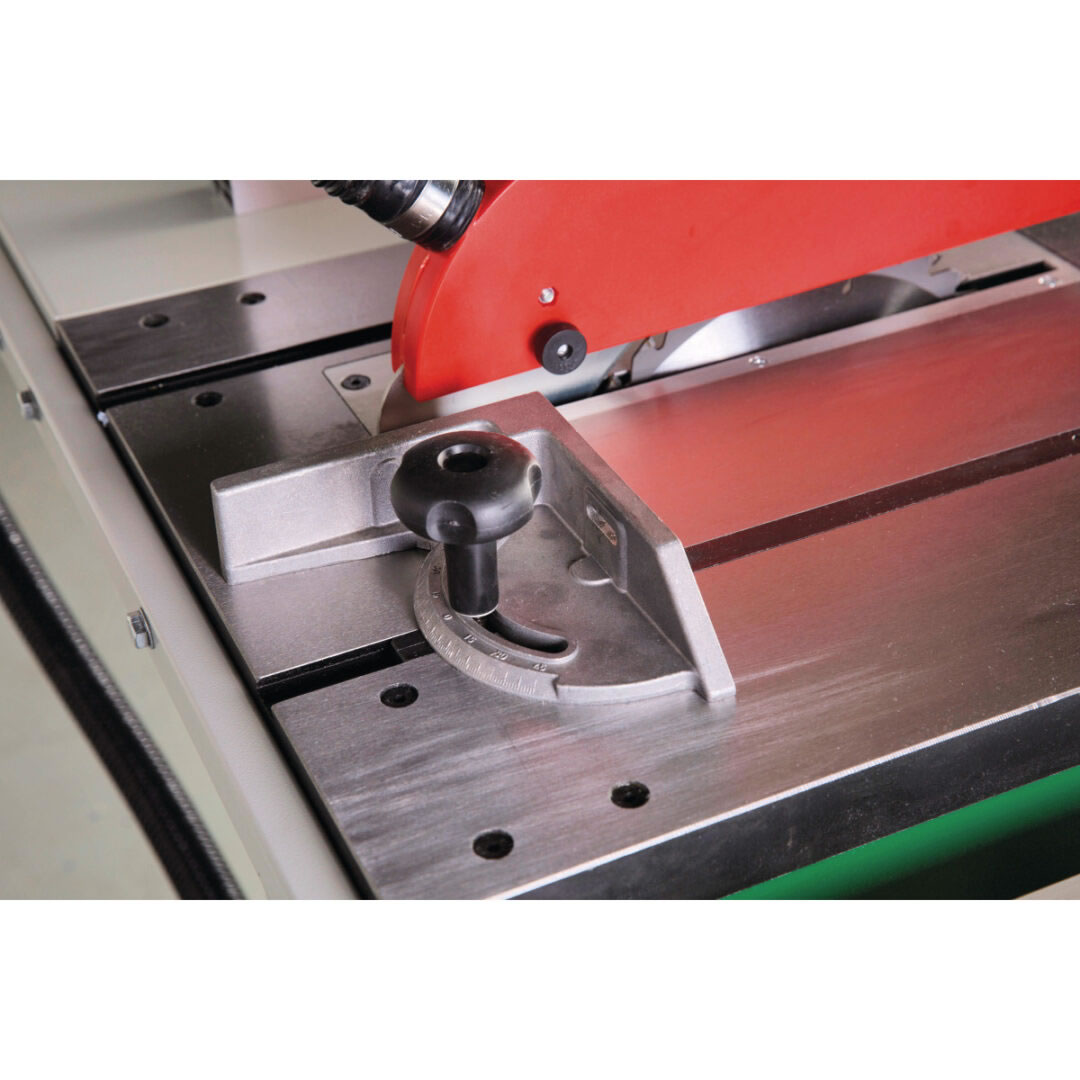

- Incl. saw blade protection hood with integrated suction connection

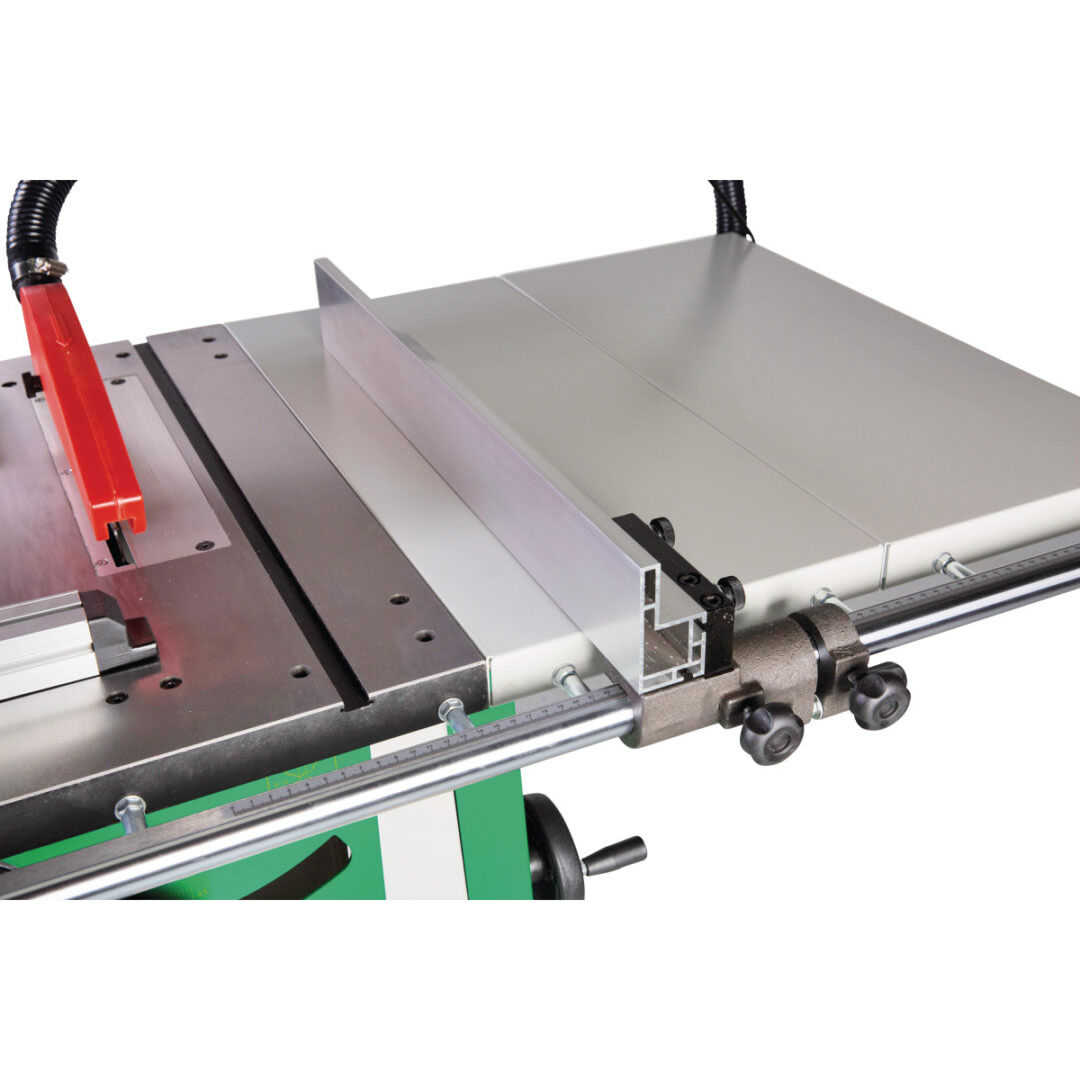

| Max. cutting width with rip fence | 680 mm |
| Max. cross cut width left from saw blade | 650 mm |
| Saw blade angle | 45 – 90 ° |
| Max. cutting height 90° | 80 mm |
| Max. cutting height 45° | 58 mm |
| (Main) saw blade diameter | 254 mm |
| (Main) saw blade speed | 4000 min¯¹ |
| Length approx. | 1430 mm |
| Width/depth approx. | 1000 mm |
| Height approx. | 1030 mm |
| Weight approx. | 105 kg |
| Drive motor output | 1,5 kW |
| Absorbed power drive motor | 2.1 kW |
| Total output | 2.1 kW |
| Total rated value | 9.3 A |
| Supply voltage | 230 V – 240 V |
| Mains frequency | 50 Hz |
| Extraction port diameter bottom | 100 mm |
| Saw blade protection extraction port diameter | 30 mm |
| Sound pressure level | 85.1 dB(A) |
| Sliding carriage length | 400 mm |
| Sliding carriage width | 250 mm |
| Table length | 635 mm |
| Table width | 420 mm |
| Work height | 850 mm |
